Name: ĐẦU KẸP BT-EOC COLLET CHUCK
Brand: Linh Kiện - Phụ Tùng
SKU: SP0414
Availability: InStock
Rating: 4.4 (89 reviews)

THÔNG SỐ KỸ THUẬT

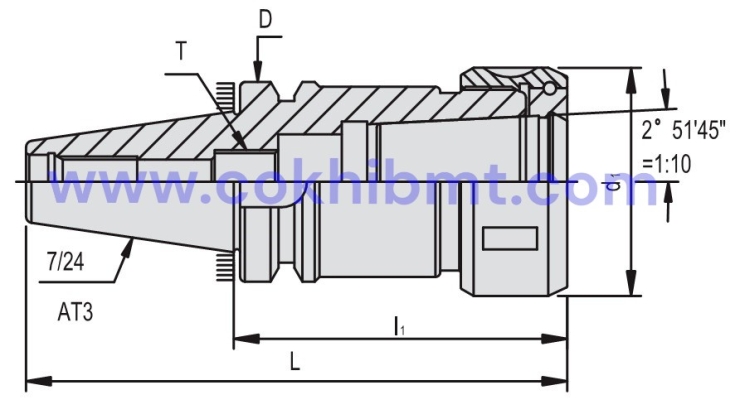

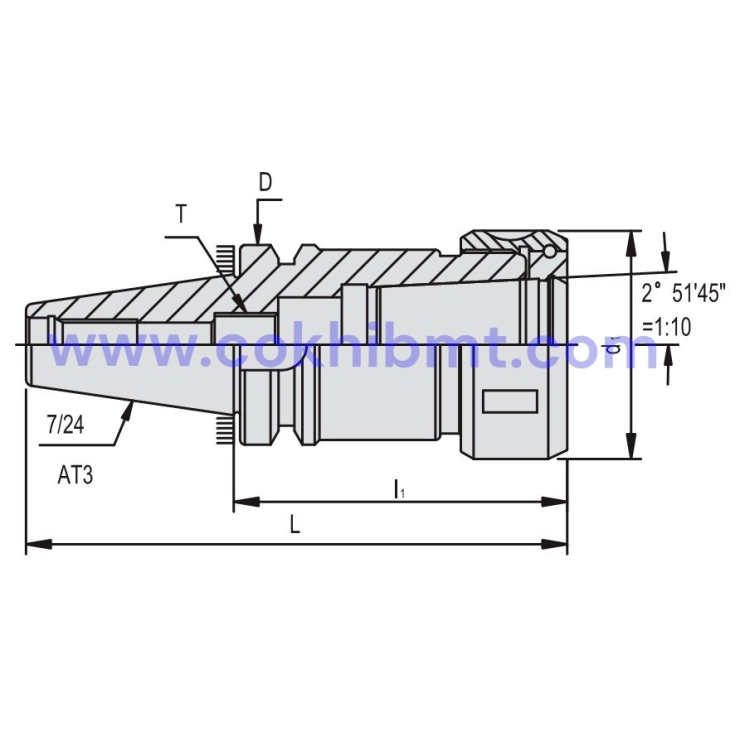

MODEL NO	TYPE	L (mm)	l₁ (mm)	D (mm)	d₁ (mm)	T	WEIGHT (KGS)
BMT-16001	BT30 × EOC25 – 70	118.4	70	46	60	M12 × 1.75P	1.00
BMT-16021	BT40 × EOC25 – 70	135.4	70	63	60	M16 × 2.0P	1.65
BMT-16023	BT40 × EOC25 – 100	165.4	100	63	60	M16 × 2.0P	2.25
BMT-16026	BT40 × EOC25 – 120	185.4	120	63	60	M16 × 2.0P	2.70
BMT-16027	BT40 × EOC32 – 90	155.4	90	63	72	M20 × 2.0P	2.00
BMT-16029	BT40 × EOC32 – 105	170.4	105	63	72	M20 × 2.0P	2.20
BMT-16031	BT40 × EOC32 – 120	185.4	120	63	72	M20 × 2.0P	2.45
BMT-16041	BT50 × EOC25 – 85	186.8	85	100	60	M16 × 2.0P	4.40
BMT-16043	BT50 × EOC25 – 100	201.8	100	100	60	M16 × 2.0P	4.80
BMT-16046	BT50 × EOC25 – 120	221.8	120	100	60	M16 × 2.0P	5.20
BMT-16047	BT50 × EOC32 – 90	191.8	90	100	72	M24 × 2.0P	4.60
BMT-16049	BT50 × EOC32 – 105	206.8	105	100	72	M24 × 2.0P	4.85
BMT-16051	BT50 × EOC32 – 120	221.8	120	100	72	M24 × 2.0P	5.35
